UND212 Smart DIN-Rail Meter

UND112 single phase two wire DIN-Rail meter is capable of STS based prepayment functionality, two-way communication with back office with various communication technology, load control with internal latching relay.

Back To List

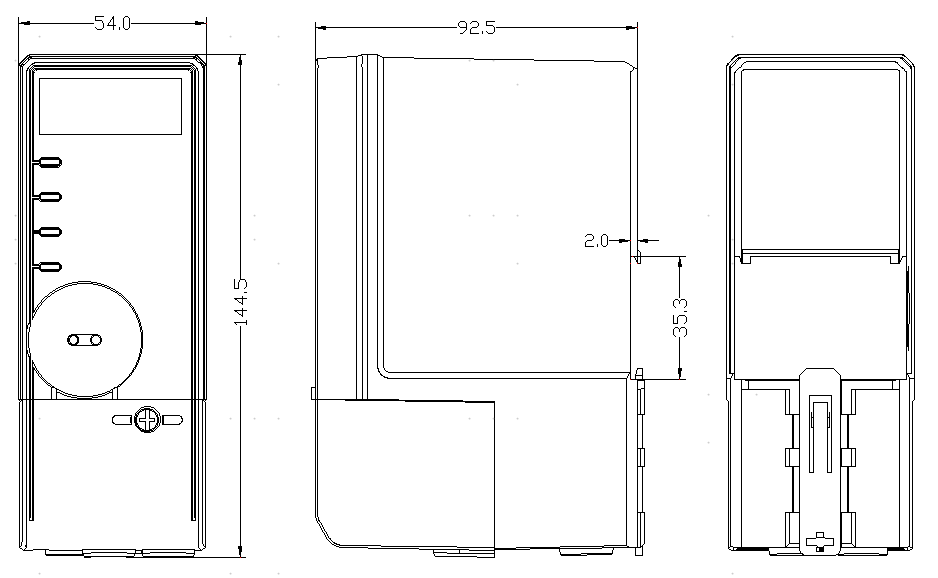

FeaturesTechnical ParameterProduct Size Chart

●Compliance with IEC standards (IEC 62052-11, IEC 62053-21, and IEC 62053-23 )
●Compliance with Interoperability standards such as G3-PLC, BPLC, DLMS/COSEM, IDIS2, STS2
●Secured communication channels and encrypted data exchange with DLMS/COSEM security suites 0/1
●Dual plug and play modules application, capable of G3-PLC / BPLC / Wi-Sun RF / 2G / 3G / 4G/CAT.1
●Terminal holes and screws with anti-dropping design
●Measurement of TOU, billing, profile, four quadrant energy & power, instantaneous values.
●Disconnect/reconnect with latching relay
●Remote/local upgrade

Nominal Voltage	230V
Voltage Range	0.5Un~1.3Un
Current	5(80)A
Frequency	50Hz / 60Hz
Accuracy Class	Active Energy: CL 1.0 1000 imp/kWh
Standard	Fully compliant with IEC 62052-11, IEC 62053-21 and IEC 62053-23 standards (mechanical,climatic, electrical, electromechanical and metrological)
Real-time Clock Accuracy	<3min/Year or <0.5s/Day
Environment	Temperature Range: -40°C ~ +75 °C Humidity: Up to 95%
Ingress Protection	IP54
Communication	Optical port (IEC 62056-21) RS485 DLMS/COSEM Protocol (IEC 62056)
